Detailed Product Description:
|
Product Name
|

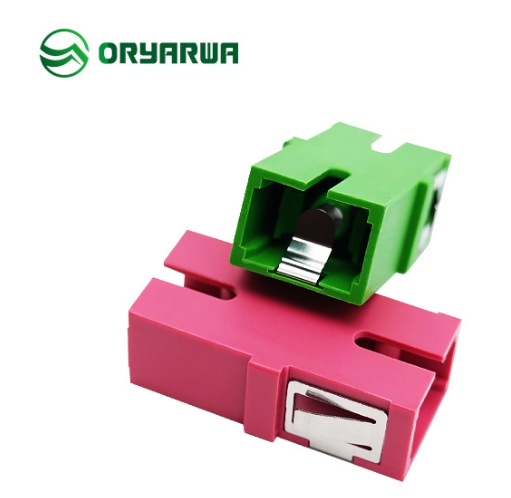

Green SC Simplex Fiber Optic Adapter with Shutter
|
Color
|
Green
|
|
Mode Type
|
Singlemode, Multimode
|
Insertion Loss
|
≤0.2dB
|
|
Sleeve Pull Force
|
2-5.9N
|
Durability
|
≤0.2dB( 500 Times)
|
|
Operating Temp.
|
-40℃～ + 80℃
|
Standards
|
IEC61754-4-2013 / IEC613000
|
Environmental and Mechanism:
|
Properties
|
Test Condition
|
Conformance
|
Test Result
|
|
Vibration
|
10-55Hz, 1.5mm, 60min
|
IEC61300-2-1
|
≤0.2dB
|
|
Mating Durability
|
500 Mating, clean every 25 mating.
|
IEC61300-2-2
|
≤0.2dB
|
|
Impact
|
1.5m, 8 drops
|
IEC61300-2-12
|
≤0.2dB
|
|
Strength of Coupling Mechanism
|
40N, 10Min, L=22-28cm
|
IEC61300-2-6
|
≤0.2dB
|
|
Temperature Cycling
|
40ºC to +85ºC, 40 cycles
|
IEC61300-2-22
|
≤0.2dB
|
|
Temperature humidty cycling
|
40ºC, 95%RH, 96Hr
|
IEC61300-2-21
|
≤0.2dB
|
|
Operating Temperature
|
-40ºC to +85ºC
|
|
≤0.2dB
|
|
Storage Temperature
|
-40ºC to +85ºC
|
|
≤0.2dB
|
Features:
> The adapters are comply with IEC61754-4
> Compatible with standard SC connectors
> All materials compliant with RoHS/REACH
> 100% Optic test (Insertion Loss)
> Ceramic sleeve tube
> Accurate external size
> Individually packaged
Fiber Optic Adapter Application:
> Telecom, Access Network
> Optical Fiber CATV
> Terminal of the Devices and Multimedia
> Testing and Medical Devices
> Optical Fiber LAN and Access Network
